VariEco S-KNew
Category
Tubular motors
The new VariEco S-K is suitable for the motorization of roller blinds, screens and roller shutters. The short design of 421 millimeters can be used to automate very narrow blinds. The short versions are available at 70, 30 and 17 rpm. The torques are 1.2 Nm (70 rpm) 3 Nm (30 rpm) and 5 Nm (17 rpm). The 3.0 m connection cable is not pluggable.
Features
Roller shutters, Awnings, Blinds and screens
Mechanical
38
Hardwired

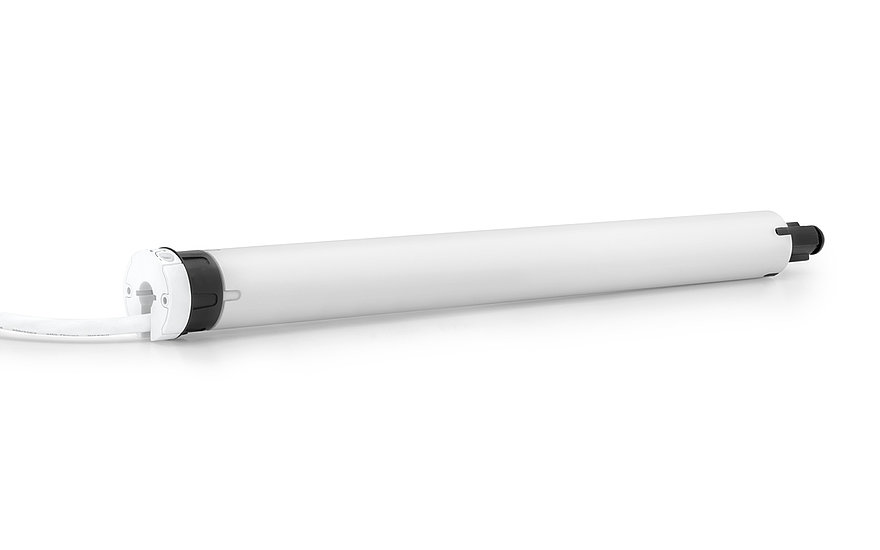

VariEco S-K tubular motor with mechanical limit switch for roller shutters and textile sun protection (short model)
VariEco S-K tubular motor with mechanical limit switch for roller shutters and textile sun protection (short model)
Download imageDescription
- Torque: 1.2, 3 and 5 Nm
- Speed: Up to 70 rpm
- Noiseless soft brake up to 5 Nm
- Short model
- Connecting cable not pluggable.
Product variants
-
VariEco S1.2/70
1.2 Nm max. torque, 70 rpm speed
Article number: 30 971.0101
-
VariEco S3/30-K
3 Nm max. torque, 30 rpm speed
Article number: 30 991.0101
-
VariEco S5-K
5 Nm max. torque, 17 rpm speed
Article number: 30 981.0101
-
