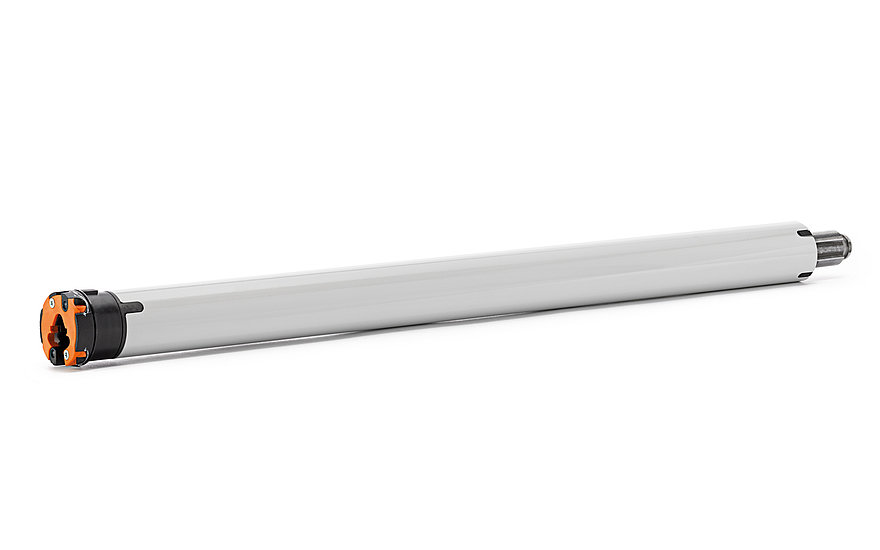

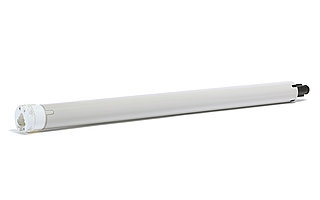

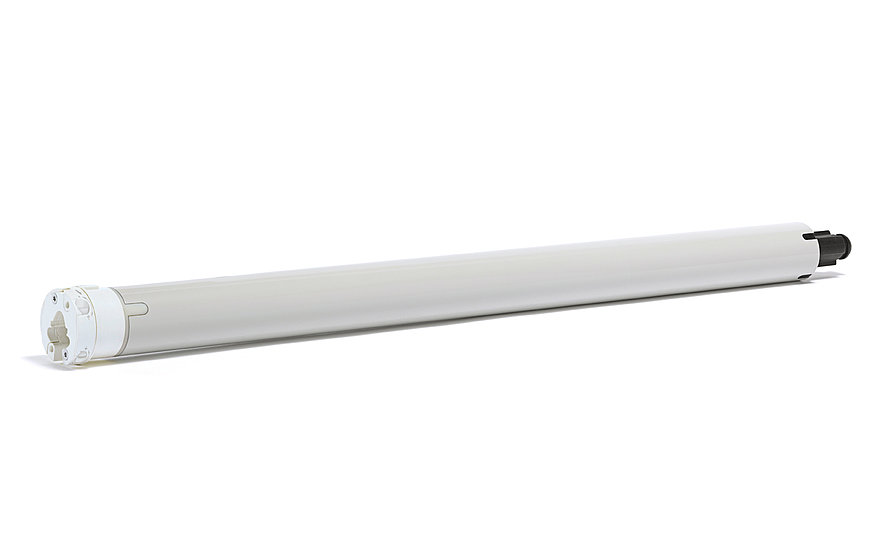

VariEco SNew

Category

Tubular motors

The wired version of the tubular motor for roller shutters and textile sun protection (from a shaft diameter of 38 mm) with mechanical limit switch. Various torques and speeds available.

Features

Roller shutters, Awnings, Blinds and screens
Mechanical
38
Hardwired
Consult us
Description
  • Torque: 1.5, 3, 5, 8, 10 and 12 Nm
  • Speed: Up to 70 rpm
  • Noiseless soft brake up to 8 Nm
Product variants

  • VariEco S1,5/70

    1,5 Nm max. torque, 70 rpm speed

    Article number: 30 921.0101

  • VariEco S3/30

    3 Nm max. torque, 30 rpm speed

    Article number: 30 911.0101

  • VariEco S5/30

    5 Nm max. torque, 30 rpm speed

    Article number: 30 931.0101

  • VariEco S5/30 FL

    5 Nm max. torque, 30 rpm speed

    Article number: 30 831.0101

  • VariEco S5 FL

    5 Nm max. torque, 17 rpm speed

    Article number: 30 843.0101

  • VariEco S8

    8 Nm max. torque, 17 rpm speed

    Article number: 30 953.0101

  • VariEco S8 FL

    8 Nm max. torque, 17 rpm speed

    Article number: 30 853.0101

  • VariEco S12 FL

    12 Nm max. torque, 17 rpm speed

    Article number: 30 863.0101

  • VariEco S10 FL

    10 Nm max. torque, 17 rpm speed

    Article number: 30 873.0101

  • VariEco S12/11 FL

    12 Nm max. torque, 11 rpm speed

    Article number: 30 855.0101

Technical data
