VariEco L RHNew
Category
Tubular motors

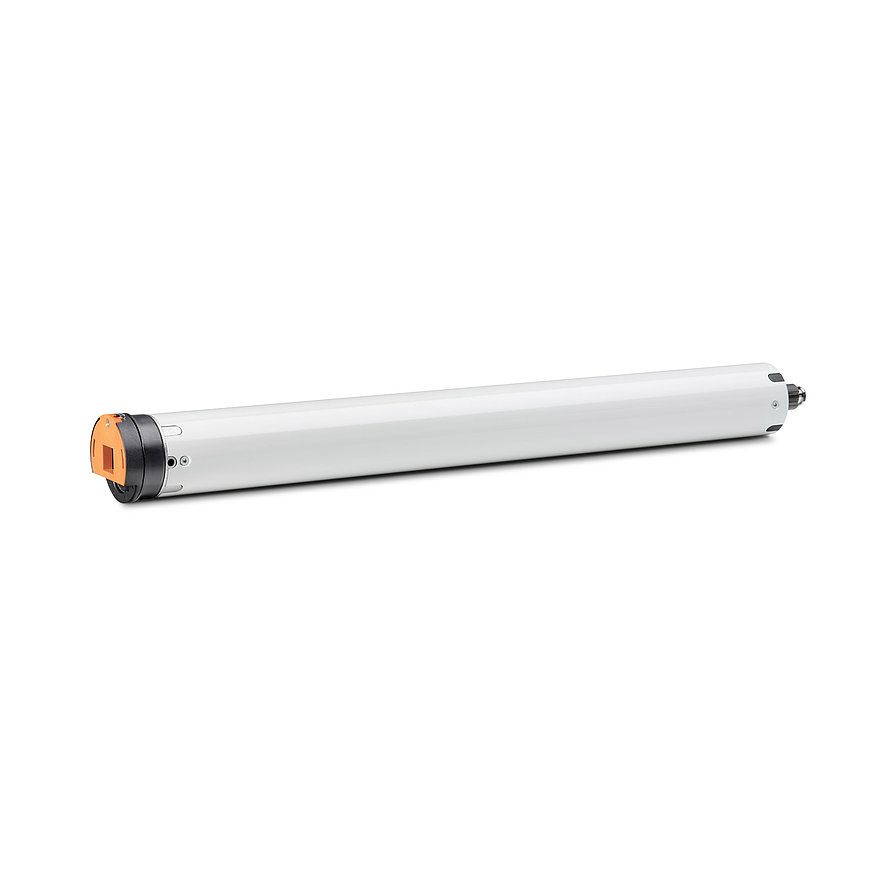

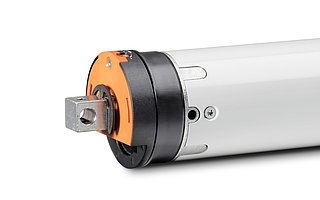

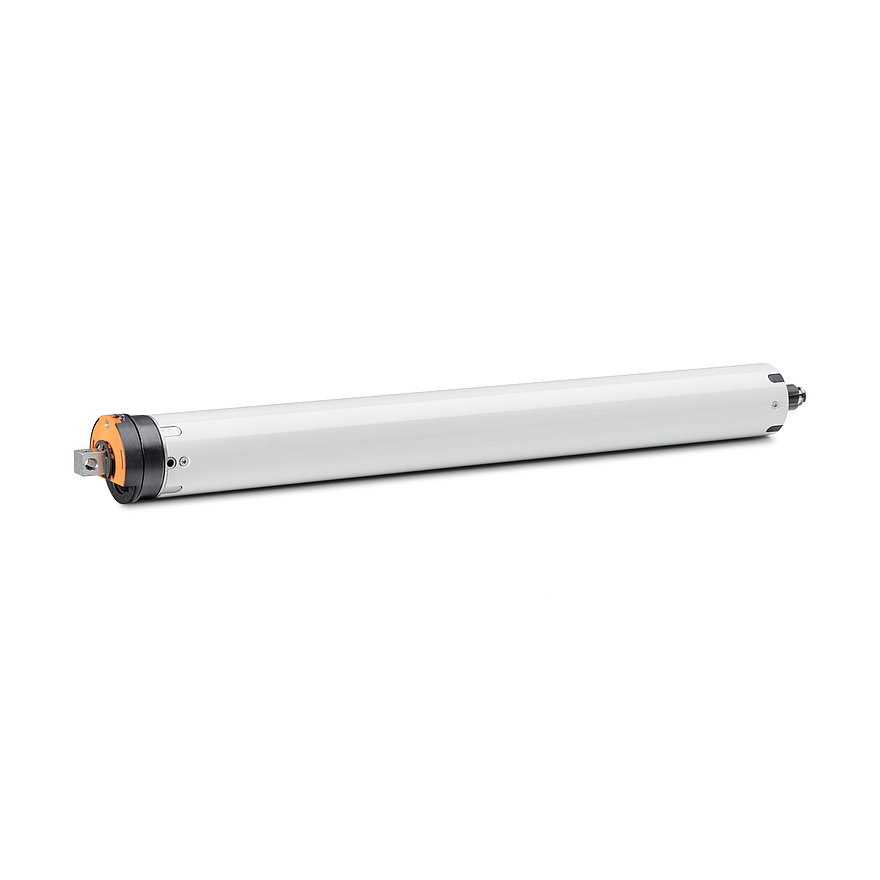

The cable-connected tubular drive VariEco L RH with round head for roller shutters, awnings, textile sun protection and small rolling doors (shafts from 63 mm) with mechanical limit switch. The tubular drive is available with torques of 15 Nm (high-speed) and from 40 - 120 Nm.
Features
Awnings, Roller shutters, Rolling doors
Mechanical
63
Hardwired
Description
-
Torque: 15 (high-speed), 40, 60, 80, 100 and 120 Nm
-
Speeds: 64 (high-speed) and 14 and 11 rpm
-
Matching:
Square bolt 16x16. Item no. 23 375.1501
(Not included in the standard scope of delivery of VariEco L RH drives but necessary for the operation of the drive)
Product variants
-

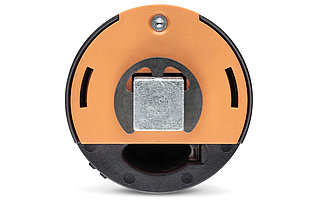

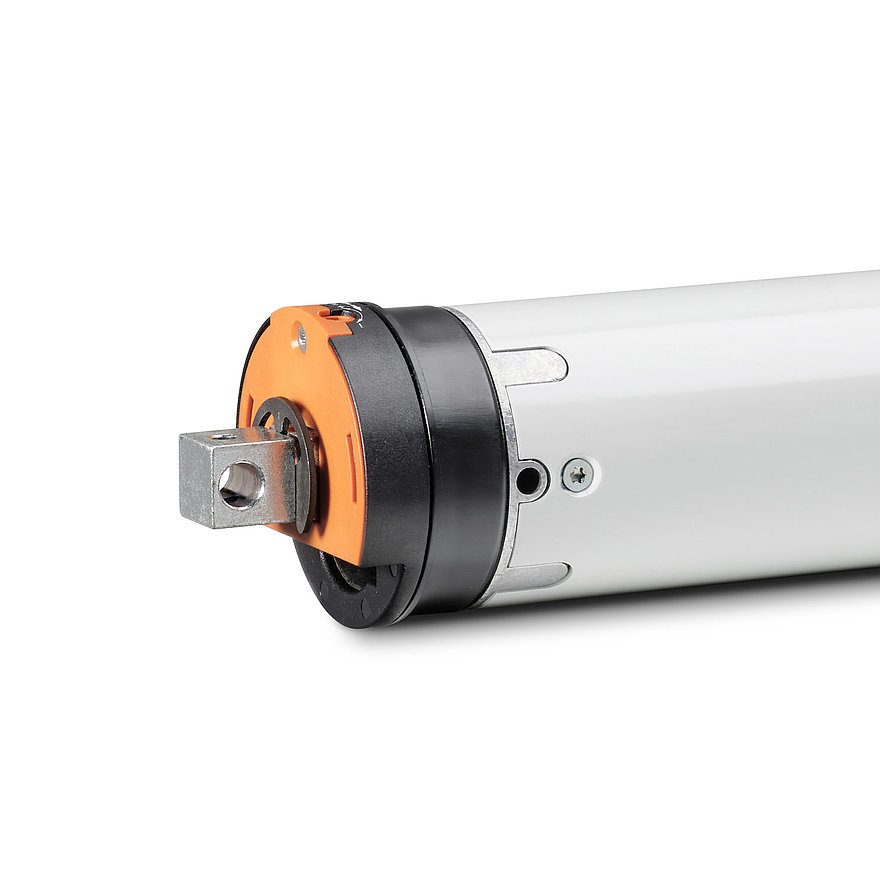

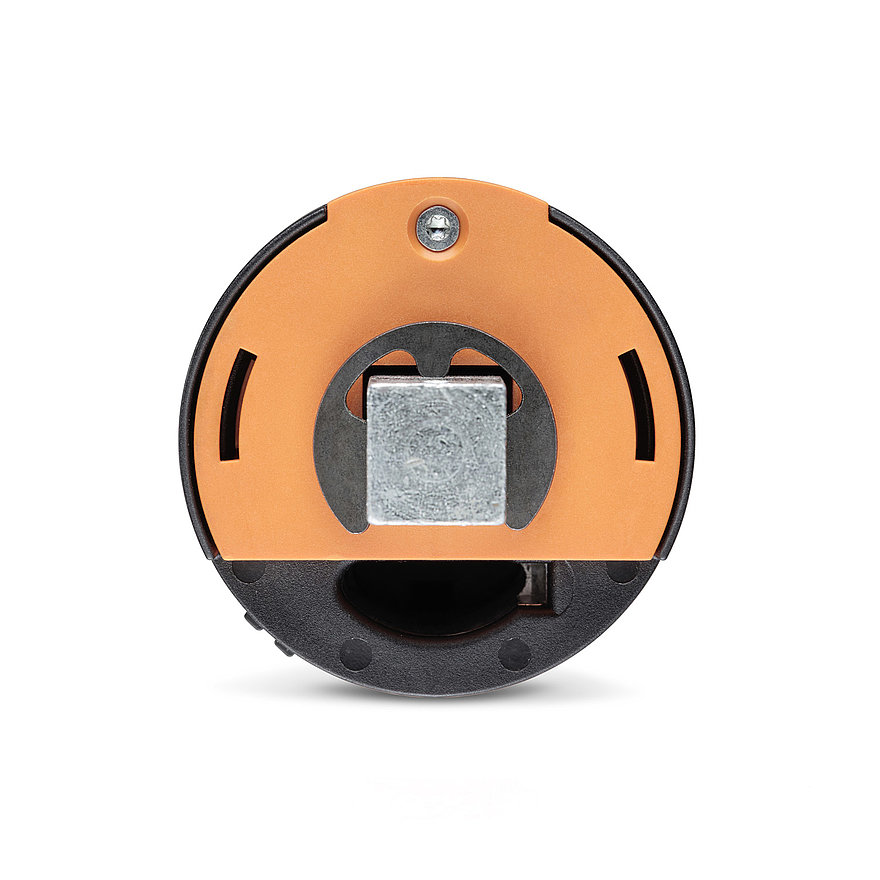

VariEco L40 RH
40 Nm max. torque, 14 rpm Speed
Article number: 36 923.0102
-
VariEco L60 RH
60 Nm max. torque, 14 rpm Speed
Article number: 36 933.0102
-

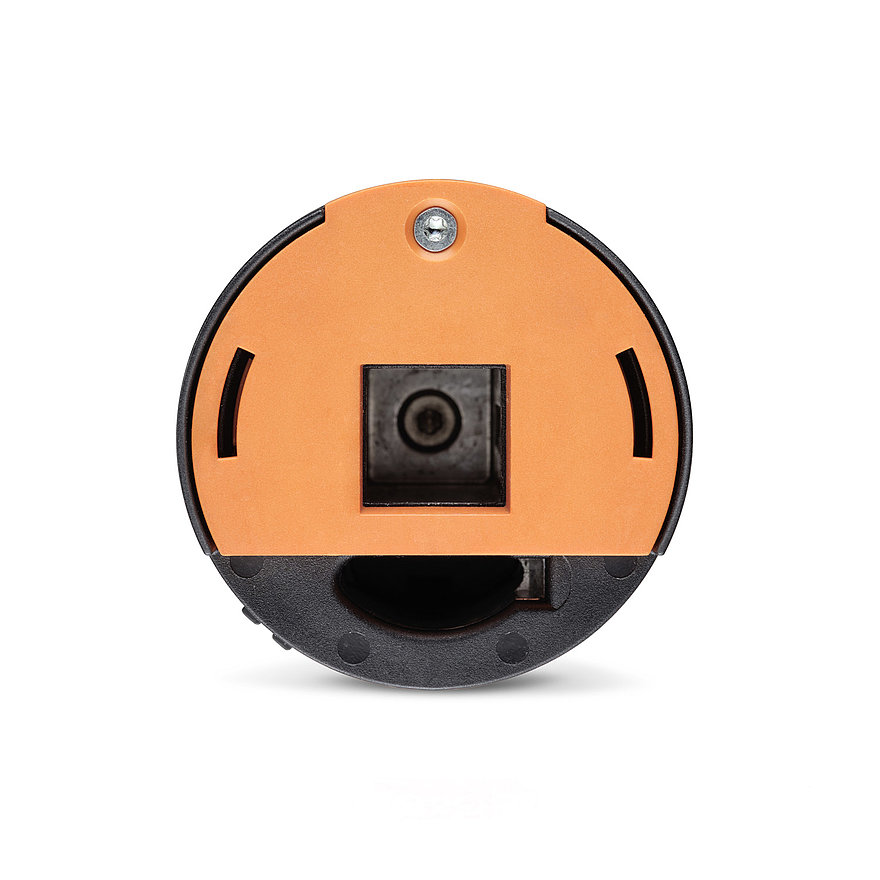

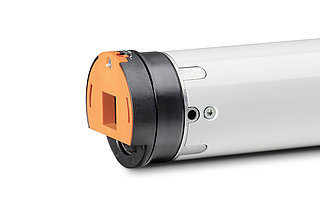

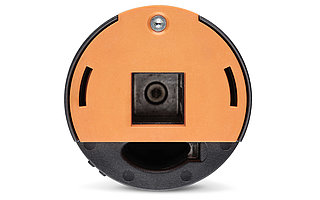

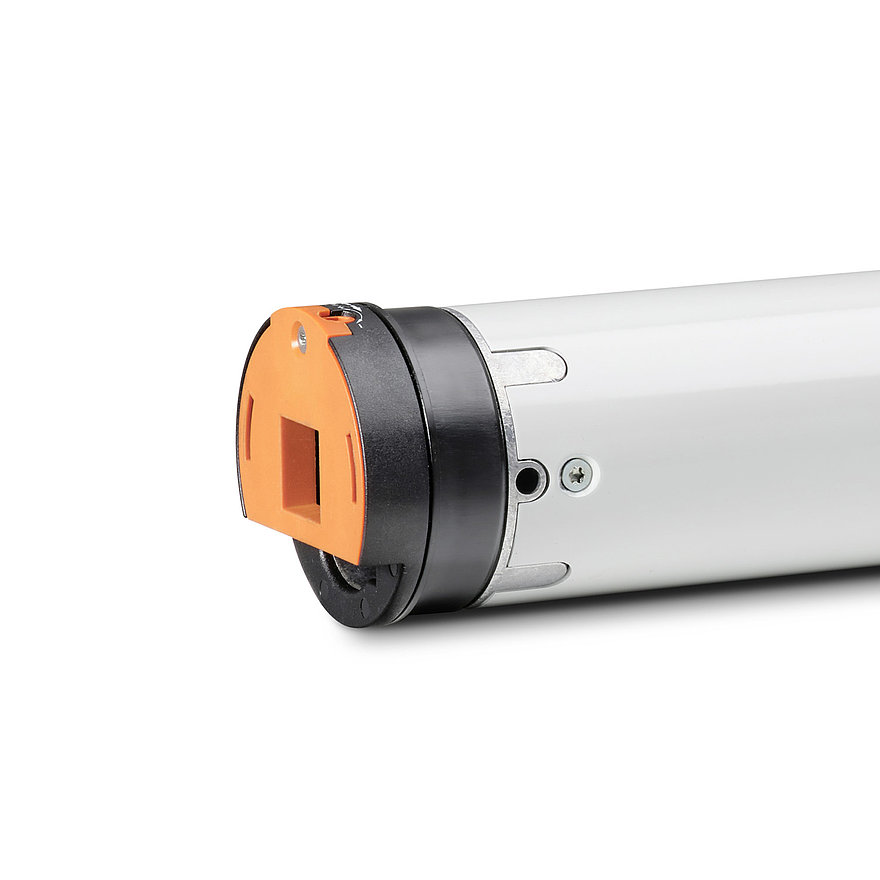

VariEco L15/64 RH
15 Nm max. torque, 64 rpm Speed
Article number: 36 883.0101
-
VariEco L80 RH
80 Nm max. torque, 14 rpm Speed
Article number: 36 943.0101
-
VariEco L100 RH
100 Nm max. torque, 11 rpm Speed
Article number: 36 953.0101
-
VariEco L120 RH
120 Nm max. torque, 11 rpm Speed
Article number: 36 963.0101
-
