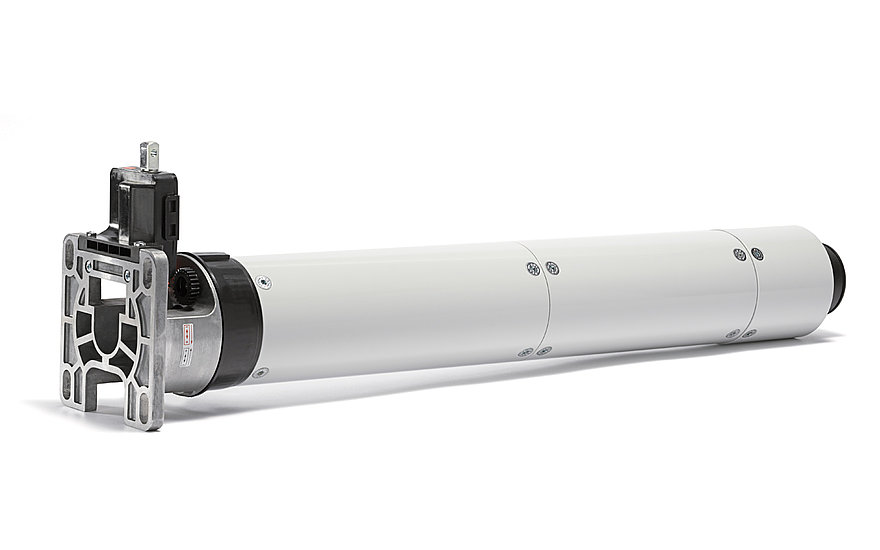

Type 15 W NMANew
Category
Tubular motors,
Rolling door drives
The roller door drive version with emergency manual operation. For safe use even if the power fails. The couplings are changeable and the drive is available with different/ balanced torques, depending on the type.
Features
Rolling doors
98
Hardwired
Description
- Emergency manual operation possible in case of power failure

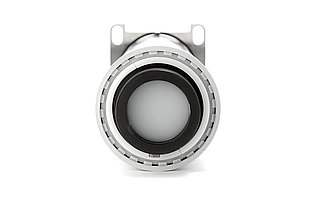

- Changeable couplings (adaptors) for tubes from Ø 98 x 2.0 mm to 168 x 4.0 mm or 114 AF (octagonal)
- Long life
- Smooth running thanks to optimum cogging

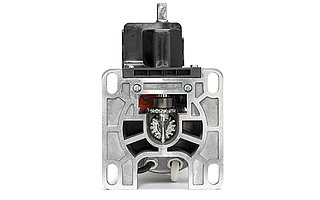

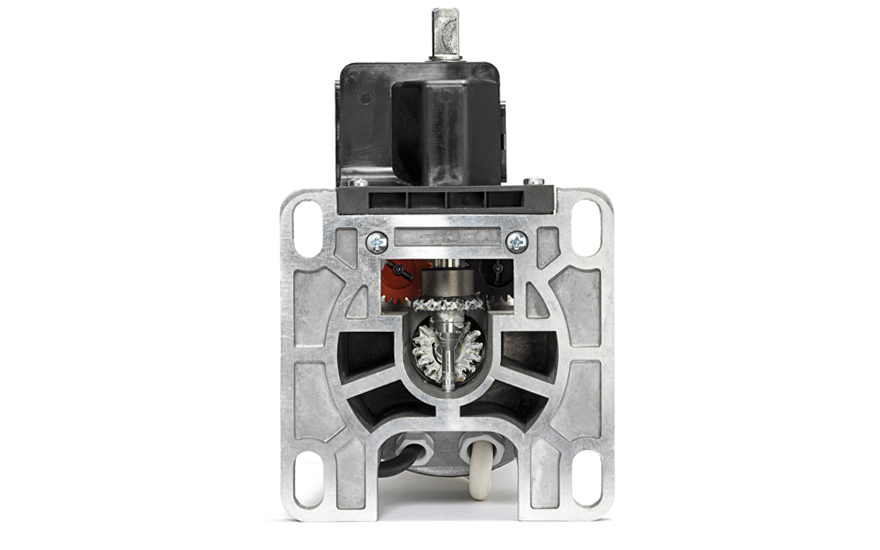

The fixing plates of the type 15 W… drives must be installed at right angles to the fixing area. It is imperative to use the wall bracket pocket item No. 23 100.0001 in case of unevenness.
Product variants
-
Typ 15/12 W NMA
120 Nm torque, 12 rpm speed
Article number: 32 312.0002
-
Typ 15/15 W NMA
150 Nm torque, 12 rpm speed
Article number: 32 292.0002
-
Typ 15/18 W NMA
180 Nm torque, 12 rpm speed
Article number: 32 332.0002
-
Typ 15/23 W NMA
230 Nm torque, 12 rpm speed
Article number: 32 362.0002
-
Typ 15/30 W NMA
300 Nm torque, 12 rpm speed
Article number: 32 382.0002
