Type 15 WNew
Category
Tubular motors,
Rolling door drives

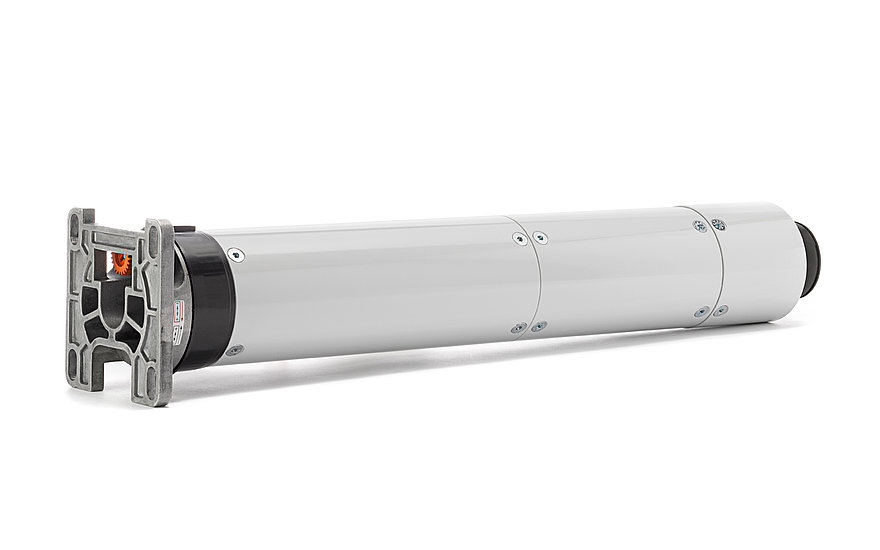

The drive for particularly heavy roller shutters, rolling doors and roller grilles. The torques range from 120 to 300 Nm, depending on the type. In addition it is characterised by its long life and smooth running.
Features
Rolling doors
98
Hardwired
Description

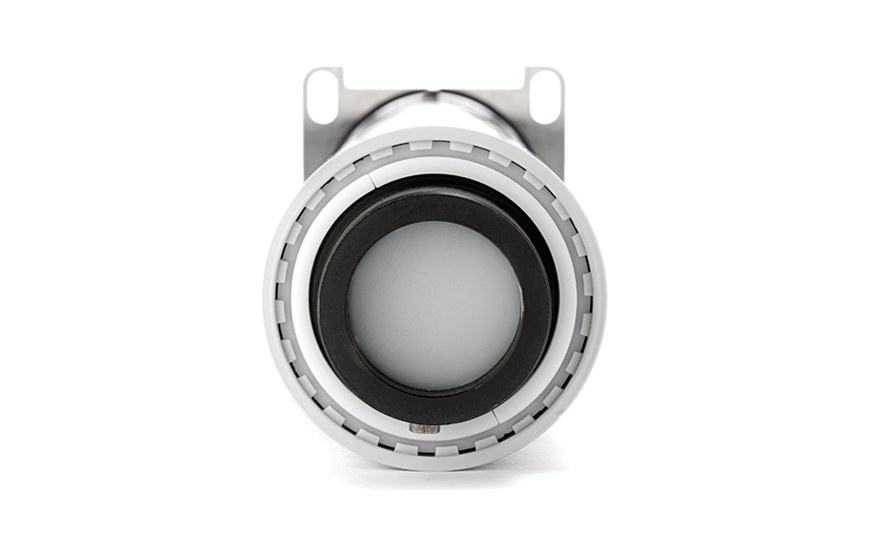

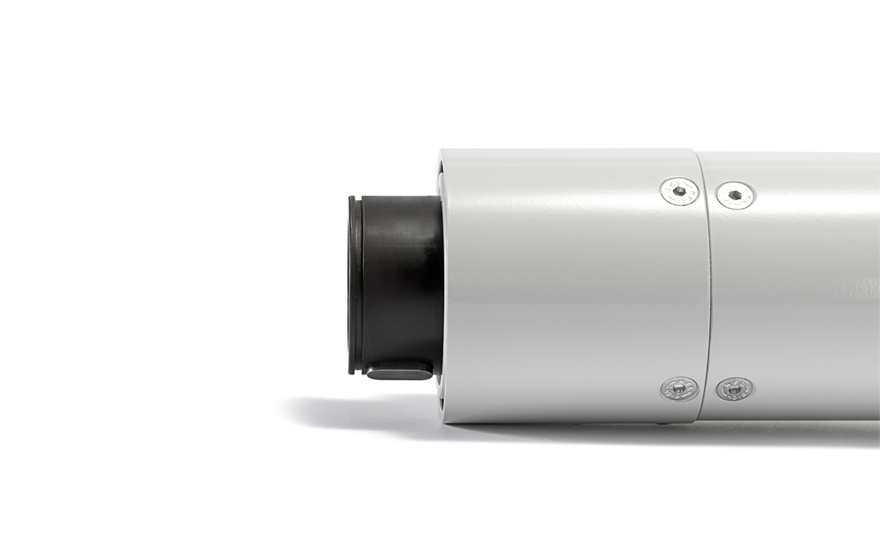

- Changeable couplings (adaptors) for tubes from Ø 98 x 2.0 mm to 168 x 4.0 mm or 114 AF (octagonal)
Long life - Smooth running thanks to optimum cogging

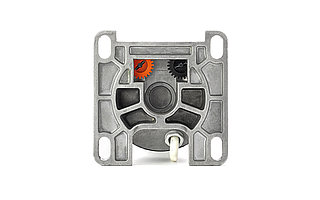

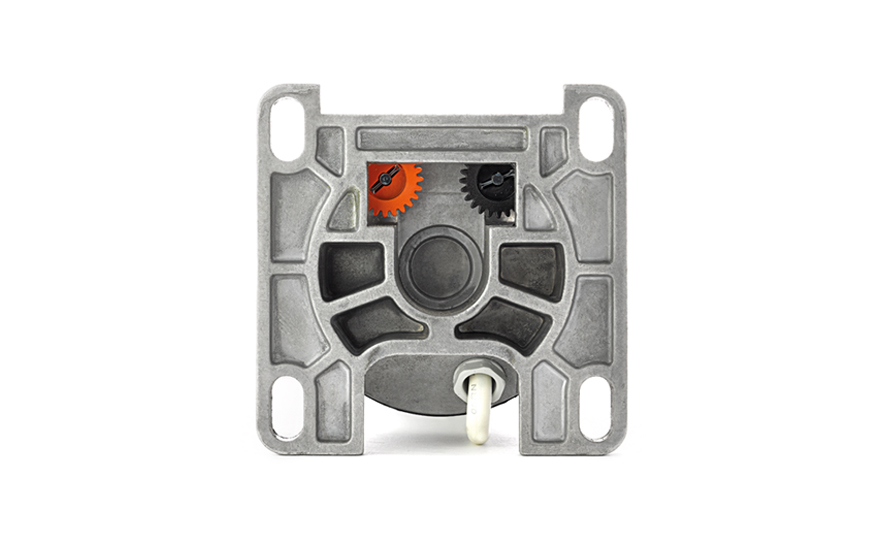

- The fixing plates of the type 15 W… drives must be installed at right angles to the fixing area. It is imperative to use the wall bracket pocket item No. 23 100.0001 in case of unevenness.
Product variants
-
Typ 15/12 W
120 Nm torque, 12 rpm speed
Article number: 32 301.0002
-
Typ 15/15 W
150 Nm torque, 12 rpm speed
Article number: 32 281.0002
-
Typ 15/18 W
180 Nm torque, 12 rpm speed
Article number: 32 321.0002
-
Typ 15/23 W
230 Nm torque, 12 rpm speed
Article number: 32 361.0002
-
Typ 15/30 W
300 Nm torque, 12 rpm speed
Article number: 32 381.0002
-
