SunTop/Z M RHNew
Category
Tubular motors

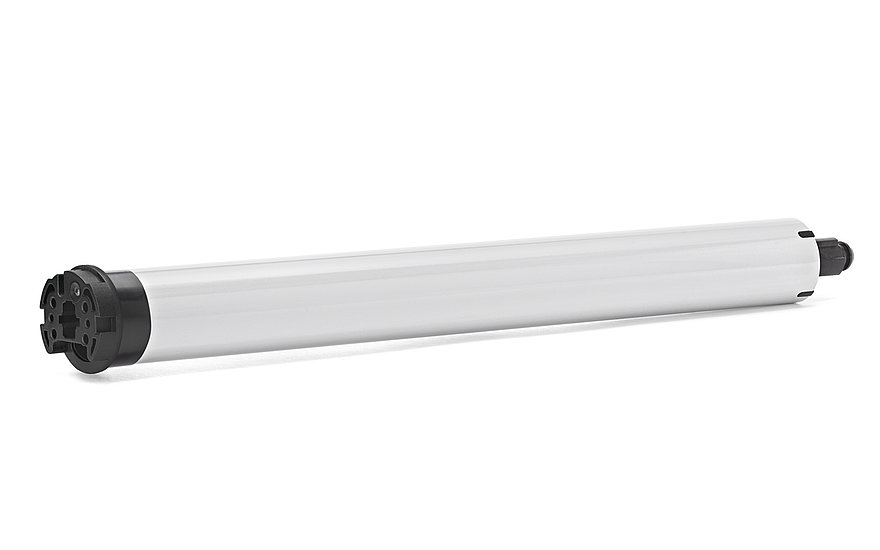

The SunTop/Z M RH is a hardwired tubular motor with wrap-around drive head. It is particularly suitable for ZIP screens (from a shaft diameter of 50 mm). The downward blind protection function stops quickly when it encounters an obstacle in order to protect the cloth.
Features
Zip screens
Electronic
50
Hardwired
Description
- Smart force measurement
- Blind protection down
- Blockage detection up
- End positions can be adjusted through the assembly cable
- Noiseless soft brake up to 20 Nm
- Round head for ZIP systems
Product variants
-
SunTop/Z M2,5/90 RH
2,5 Nm max. torque, 90 rpm speed
Article number: 38 669.0001
-
SunTop/Z M4/60 RH
4 Nm max. torque, 60 rpm speed
Article number: 38 679.0001
-
SunTop/Z M7/23 RH
7 Nm max. torque, 23 rpm speed
Article number: 38 623.0001
-
SunTop/Z M10 RH
10 Nm max. torque, 14 rpm speed
Article number: 38 631.0001
-
SunTop/Z M12/23 RH
12 Nm max. torque, 23 rpm speed
Article number: 38 633.0001
-
SunTop/Z M20 RH
20 Nm max. torque, 14 rpm speed
Article number: 38 641.0001
-
SunTop/Z M30 RH
30 Nm max. torque, 14 rpm speed
Article number: 38 651.0001
-
