SunTop/Z M-868 RHNew
Category
Tubular motors

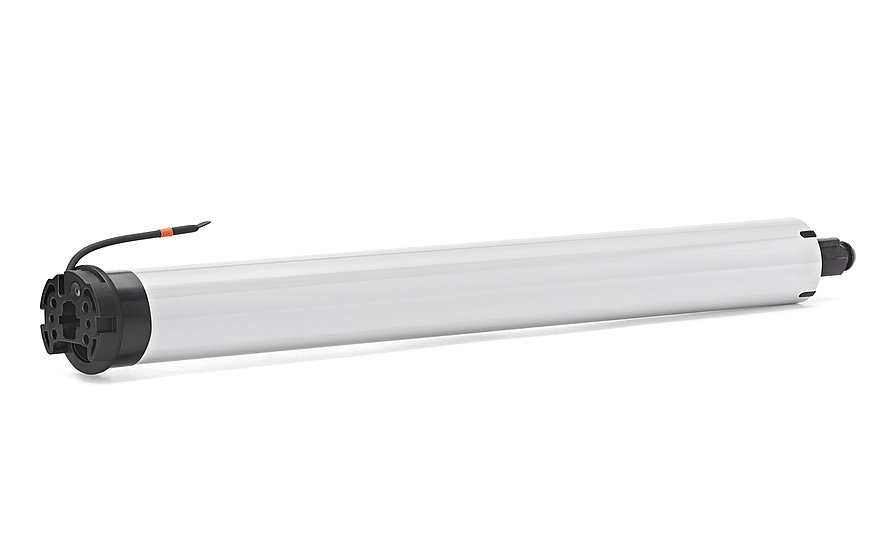

The SunTop/Z M-868 RH is a radio tubular motor with wrap-around drive head. The SunTop/Z with its downward blind protection function stops quickly when it encounters an obstacle. It is thus particularly suitable for ZIP screens (from a shaft diameter of 50 mm).
Features
Zip screens
Electronic
50
Radio
Description
- Smart force measurement
- Blind protection down
- Blockage detection up
- End positions can be adjusted through the assembly cable or hand-held transmitter
- Noiseless soft brake up to 20 Nm
- Round head for ZIP systems
Product variants
-
SunTop/Z M2,5/90-868 RH
2,5 Nm max. torque, 90 rpm speed
Article number: 38 660.0006
-
SunTop/Z M20-868 RH
20 Nm max. torque, 14 rpm speed
Article number: 38 642.0006
-
SunTop/Z M10-868 RH
10 Nm max. torque, 14 rpm speed
Article number: 38 632.0006
-
SunTop/Z M30-868 RH
30 Nm max. torque, 14 rpm speed
Article number: 38 652.0006
-
SunTop/Z M12/23-868 RH
12 Nm max. torque, 23 rpm speed
Article number: 38 634.0006
-
SunTop/Z M4/60-868 RH
4 Nm max. torque, 60 rpm speed
Article number: 38 670.0006
-
SunTop/Z M7/23-868 RH
7 Nm max. torque, 23 rpm speed
Article number: 38 624.0006
-
