SunTop MNew

Category

Tubular motors

The wired version of the SunTop M is particularly suitable for the operation of different types of textile sun protection (from a shaft diameter of 50 mm). Like the radio version it also features smart force measurement and blockage detection.

Features

Awnings, Blinds and screens
Electronic
50
Hardwired

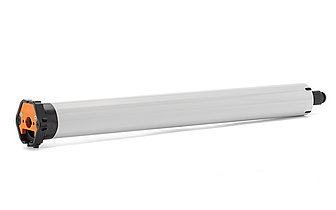

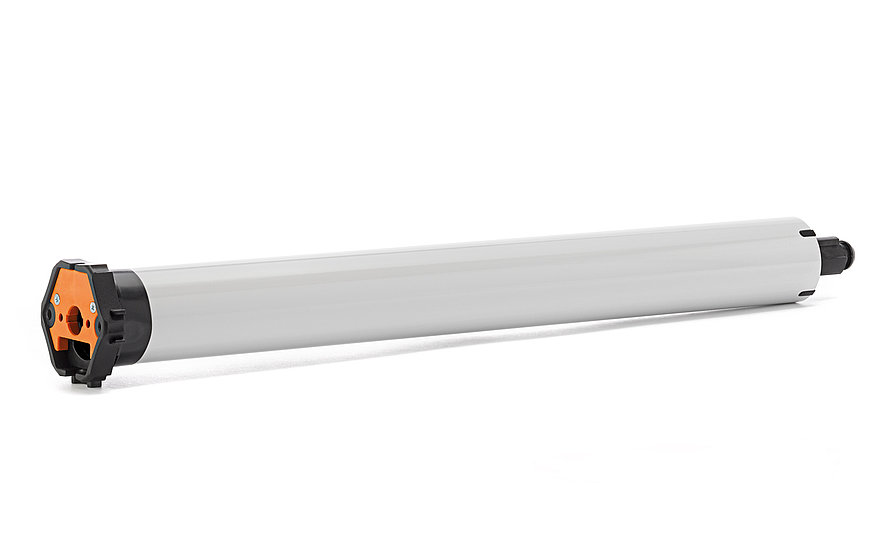

SunTop M tubular motor, complete

SunTop M wired tubular motor for textile sun protection

Description
  • Smart force measurement
  • Blockage detection up/down
  • End positions can be adjusted through the assembly cable
  • Noiseless soft brake up to 20 Nm
Product variants
  • SunTop M7/23

    7 Nm max. torque, 23 rpm speed

    Article number: 34 725.0001

  • SunTop M10

    10 Nm max. torque, 14 rpm speed

    Article number: 34 721.0001

  • SunTop M12/23

    12 Nm max. torque, 23 rpm speed

    Article number: 34 735.0001

  • SunTop M20

    20 Nm max. torque, 14 rpm speed

    Article number: 34 731.0001

  • SunTop M30

    30 Nm max. torque, 14 rpm speed

    Article number: 34 741.0001

  • SunTop M40

    40 Nm max. torque, 14 rpm speed

    Article number: 34 751.0001

  • SunTop M50-868 SunTop M50

    50 Nm max. torque, 14 rpm speed

    Article number: 34 761.0001
