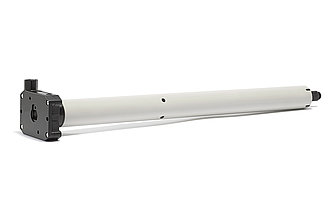

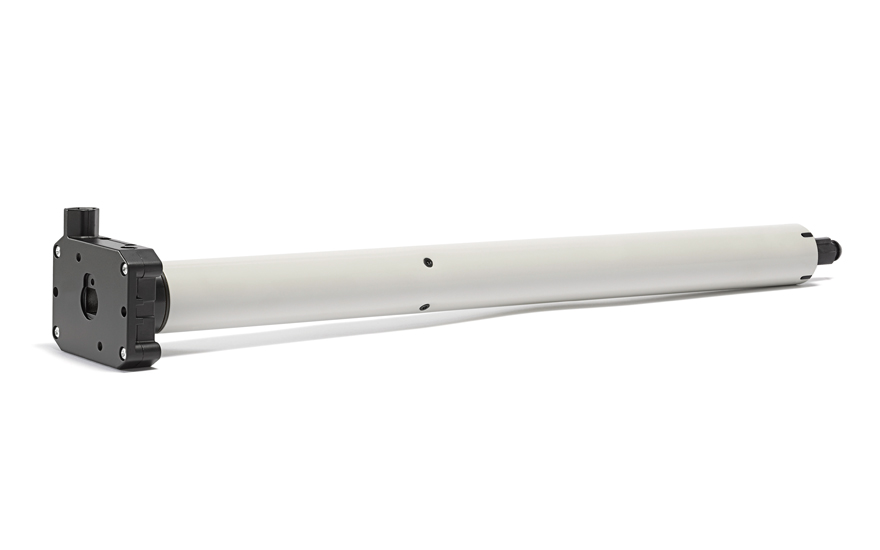

RolTop/D+ NHKNew
Category
Tubular motors
This drive has all the advantages of the RolTop/D+ series and also has an emergency hand crank that moves the slats up manually in an emergency. The intelligent drive does not require teaching-in again after crank operation; it recognises the end positions automatically.
Features
Roller shutters
Electronic
50
Hardwired
Description
- Mechatronic end position detection with soft switch-off
- Intelligent force measurement
- Curtain protection up/down
- Self-learning end positions
- Silent soft brake up to 20 Nm
- Can only be used in conjunction with rigid shaft connectors
Product variants
-
RolTop/D+ M6 NHK
6 Nm torque, 14 rpm speed
Article number: 34 103.0001
-
RolTop/D+ M10 NHK
10 Nm torque, 14 rpm speed
Article number: 34 113.0001
-
RolTop/D+ M20 NHK
20 Nm torque, 14 rpm speed
Article number: 34 123.0001
-
RolTop/D+ M30 NHK
30 Nm torque, 14 rpm speed
Article number: 34 133.0001
-
