RolTop/D+ MNew

Category

Tubular motors

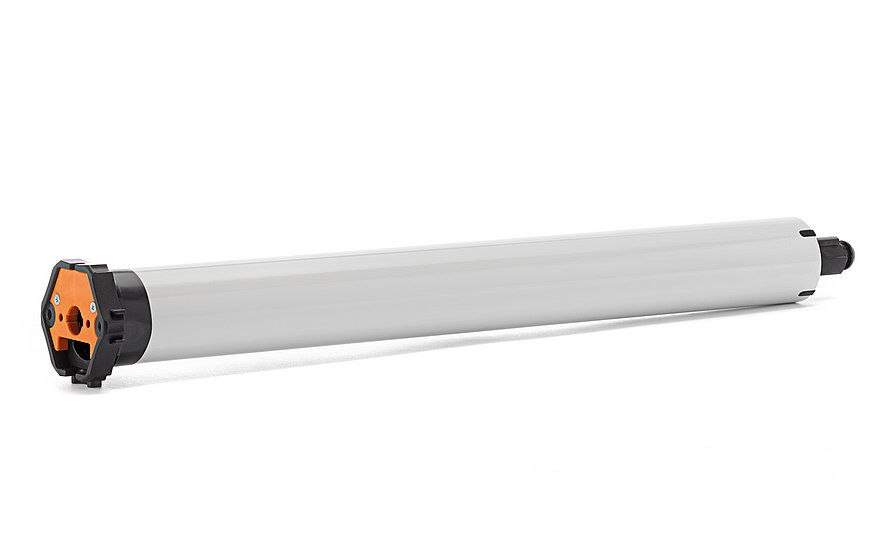

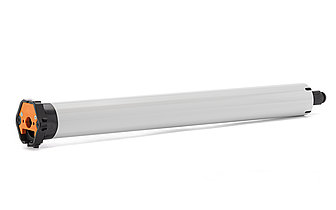

The wired version of the tubular motor for roller shutters (from a shaft diameter of 50 mm). Like the radio version it features self-learning end positions and is available as standard with blind protection and smart force measurement.

Features

Roller shutters
Electronic
50
Hardwired
Description
  • Smart force measurement
  • Blind protection up/down and free travel
  • Self-learning end positions
  • Noiseless soft brake up to 20 Nm

Usable only in conjunction with rigid shaft fasteners!

Product variants
  • RolTop/D+ M6

    6 Nm max. torque, 14 rpm speed

    Article number: 34 013.0001

  • RolTop/D+ M10

    10 Nm max. torque, 14 rpm speed

    Article number: 34 023.0001

  • RolTop/D+ M20

    20 Nm max. torque, 14 rpm speed

    Article number: 34 033.0001

  • RolTop/D+ M30

    30 Nm max. torque, 14 rpm speed

    Article number: 34 043.0001
