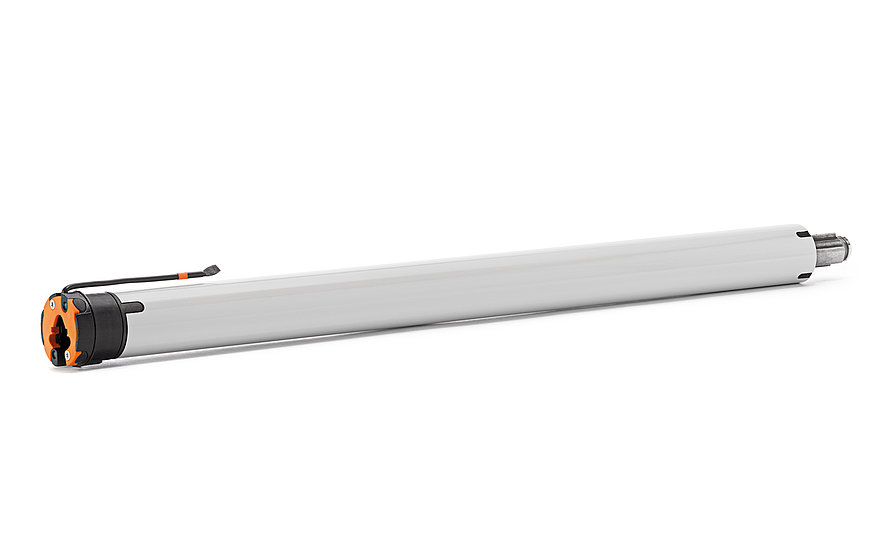

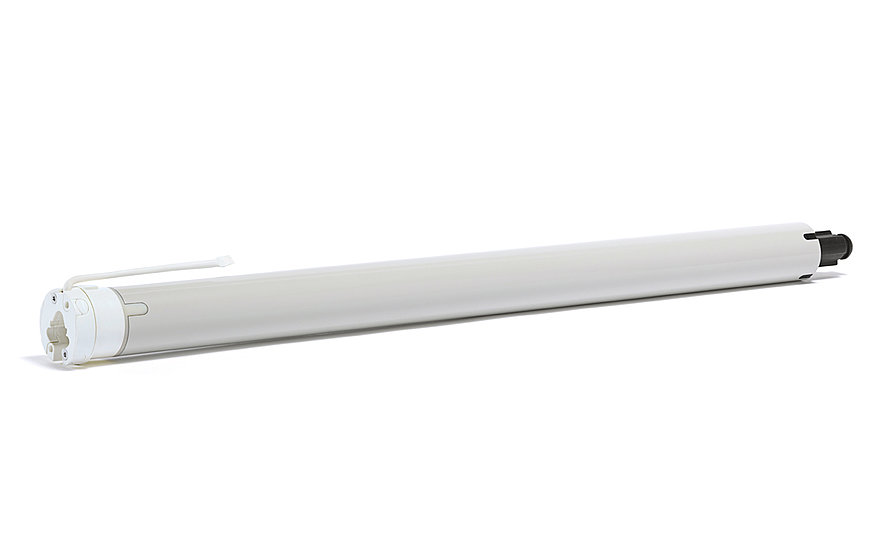

RolTop S-868New

Category

Tubular motors

The radio tubular motor for small roller shutters and textile sun protection (from a shaft diameter of 38 mm) ensures gentle operation thanks to the blind protection function and smart force measurement.

Features

Roller shutters, Blinds and screens
Electronic
38
Radio
Consult us
Description
  • Smart force measurement
  • Blind protection up/down and free travel
  • Parallel connection possible
  • End positions can be adjusted through the assembly cable or hand-held transmitter
  • Noiseless soft brake up to 8 Nm
Product variants

  • RolTop S1,5/70-868

    1,5 Nm max. torque, 70 rpm speed

    Article number: 30 222.0006

  • RolTop S3/30-868

    3 Nm max. torque, 30 rpm speed

    Article number: 30 212.0006

  • RolTop S5/30-868

    5 Nm max. torque, 30 rpm speed

    Article number: 30 232.0006

  • RolTop S5-868

    5 Nm max. torque, 17 rpm speed

    Article number: 30 234.0006

  • RolTop S8-868

    8 Nm max. torque, 17 rpm speed

    Article number: 30 254.0006

  • RolTop S12-868

    12 Nm max. torque, 17 rpm speed

    Article number: 30 814.0006

  • RolTop S10-868 FL

    10 Nm max. torque, 17 rpm speed

    Article number: 30 824.0006

  • RolTop S12/11-868 FL

    12 Nm max. torque, 11 rpm speed

    Article number: 30 816.0006

Technical data
