RolTop M-868New

Features

Applications

Roller shutters

Limit switch

Electronic

Shaft size (mm) from

Control

Radio

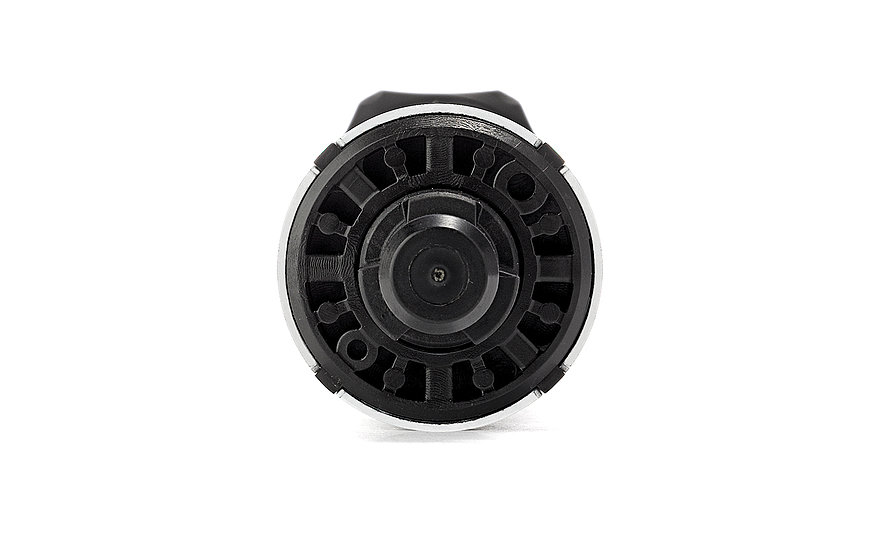

Plastic torque output of the RolTop M-868 radio tubular motor for roller shutters

Plastic torque output of the RolTop M-868 radio tubular motor for roller shutters
Download image

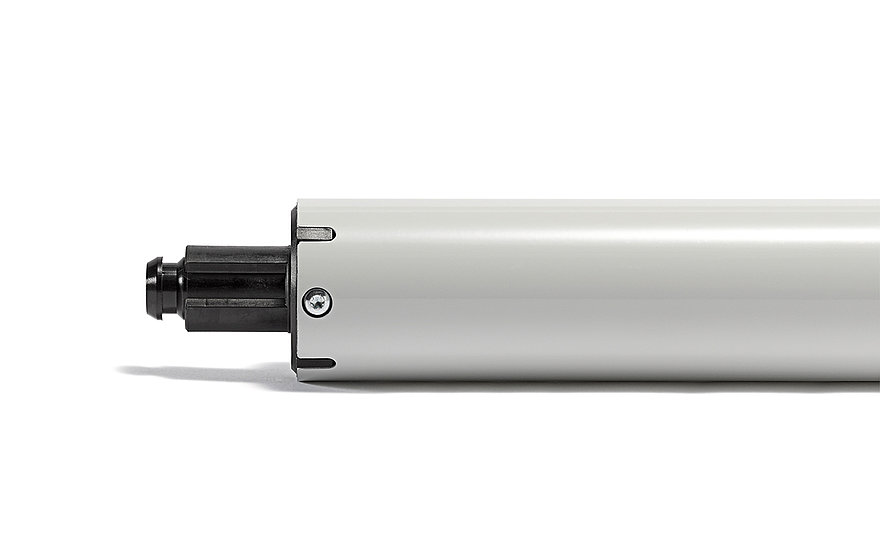

Plastic torque output (lateral) of the RolTop M-868 radio tubular motor for roller shutters

Plastic torque output (lateral) of the RolTop M-868 radio tubular motor for roller shutters
Download image

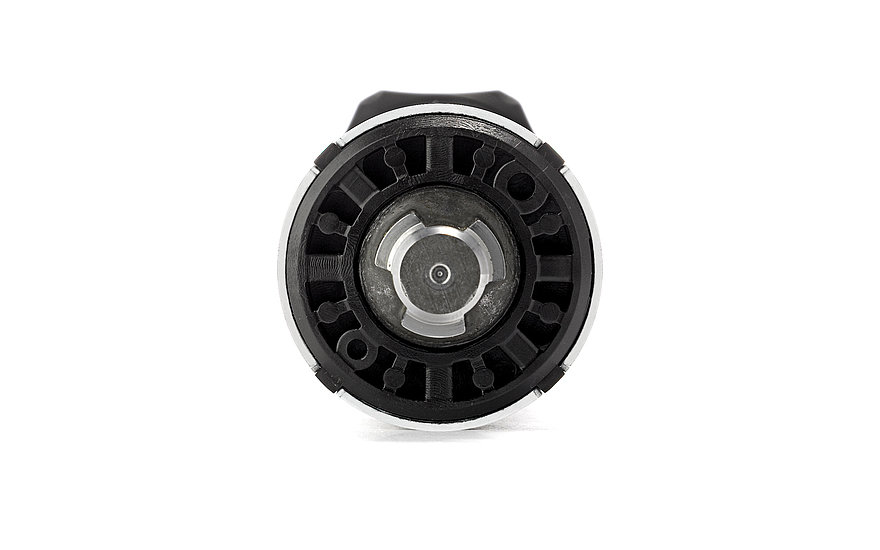

Metal torque output of the RolTop M-868 radio tubular motor for roller shutters

Metal torque output of the RolTop M-868 radio tubular motor for roller shutters
Download image

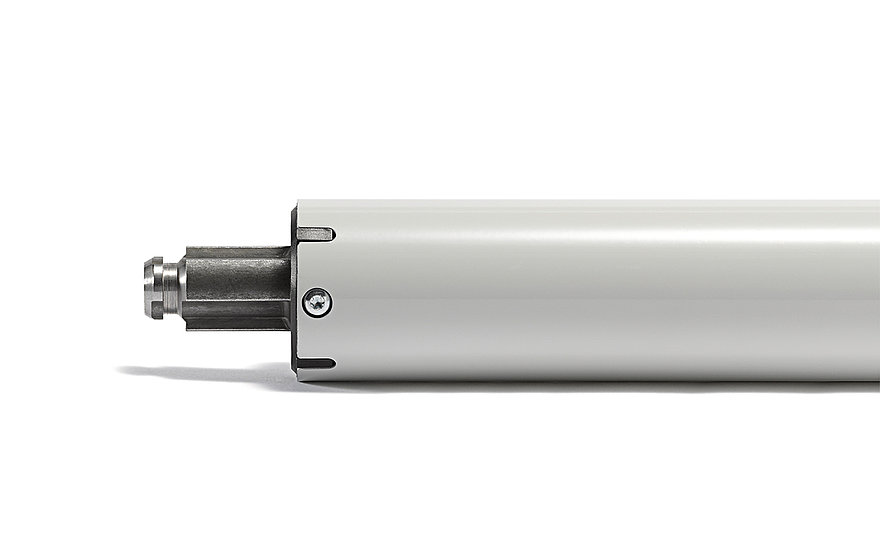

Metal torque output (lateral) of the RolTop M-868 radio tubular motor for roller shutters

Metal torque output (lateral) of the RolTop M-868 radio tubular motor for roller shutters
Download image

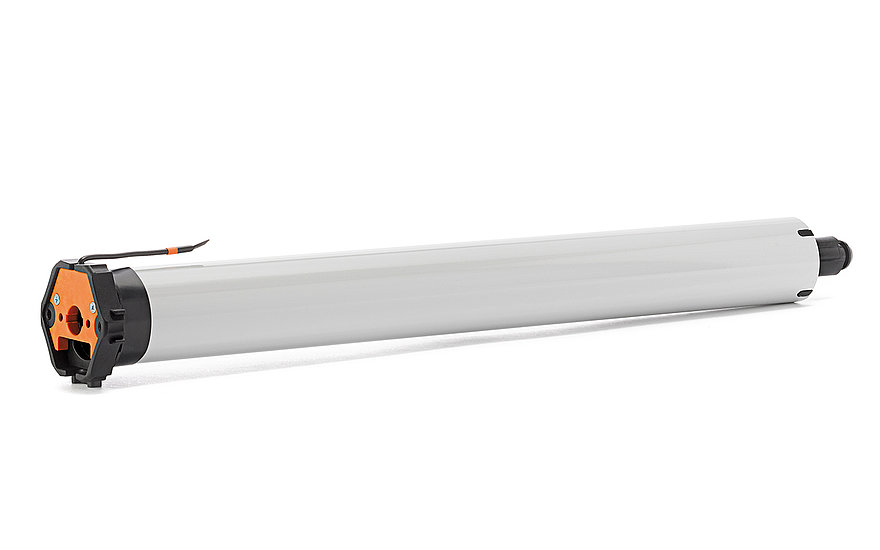

RolTop M-868 radio tubular motor for roller shutters

RolTop M-868 radio tubular motor for roller shutters
Download image

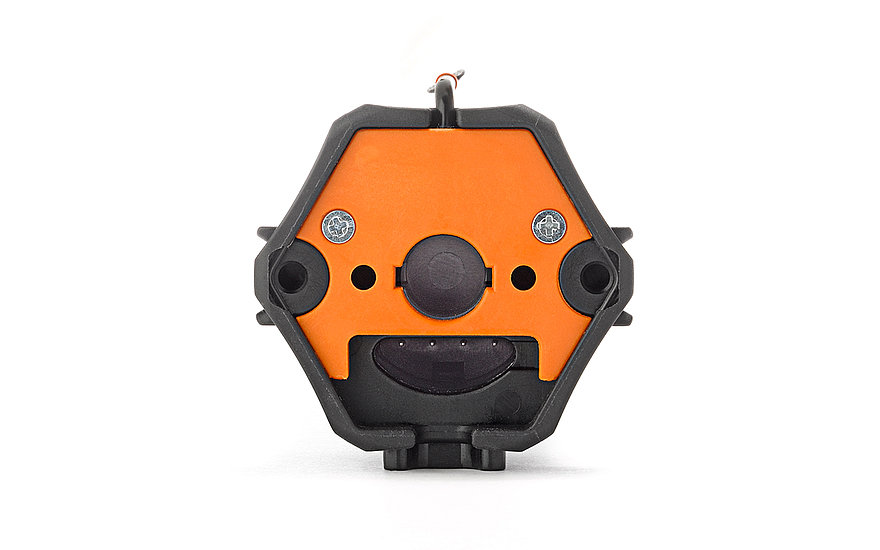

Head of the RolTop M-868 radio tubular motor for roller shutters

Head of the RolTop M-868 radio tubular motor for roller shutters
Download image

Consult us

Smart force measurement
Blind protection up/down and free travel
Adjustable release
End positions can be adjusted through the assembly cable or hand-held transmitter
Noiseless soft brake up to 20 Nm"

RolTop M6-868

6 Nm max. torque, 14 rpm speed

Article number: 34 302.0006
RolTop M7/23-868

7 Nm max. torque, 23 rpm speed

Article number: 34 226.0006
RolTop M10-868

10 Nm max. torque, 14 rpm speed

Article number: 34 222.0006
RolTop M12/23-868

12 Nm max. torque, 23 rpm speed

Article number: 34 236.0006
RolTop M20-868

20 Nm max. torque, 14 rpm speed

Article number: 34 232.0006
RolTop M30-868

30 Nm max. torque, 14 rpm speed

Article number: 34 242.0006
RolTop M40-868

40 Nm max. torque, 14 rpm speed

Article number: 34 252.0006
RolTop M50-868

50 Nm max. torque, 14 rpm speed

Article number: 34 262.0006

RolTop-868

Operating instruction
12.03.2015

Category: Tubular motors

Operating instruction for all RolTop-868 Radio controlled Tubular motors

Download language: English

Download

PDF, 2 MB
