RolTop MNew

Category

Tubular motors

The wired version of the tubular motor for roller shutters (from a shaft diameter of 50 mm). Blind protection, smart force measurement and soft brake ensure gentle operation.

Features

Roller shutters
Electronic
50
Hardwired

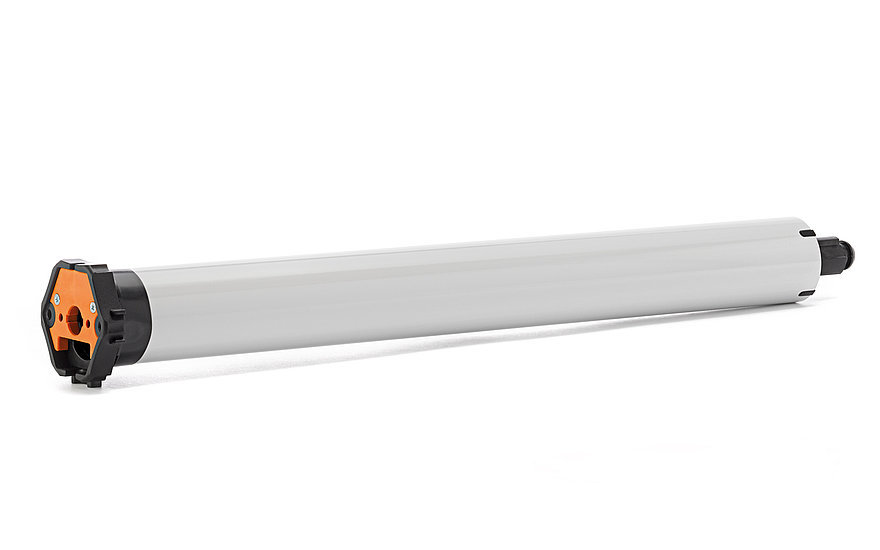

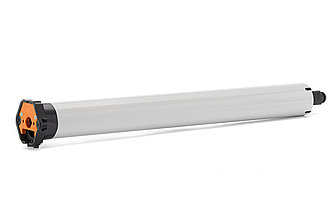

RolTop M tubular motor, complete

RolTop M tubular motor for roller shutters, roller blinds and screens

Description
  • Smart force measurement
  • Blind protection up/down and free travel
  • Adjustable release
  • End positions can be adjusted through the assembly cable
  • Noiseless soft brake up to 20 Nm
Product variants
  • RolTop M6

    6 Nm max. torque, 14 rpm speed

    Article number: 34 301.0001

  • RolTop M7/23

    7 Nm max. torque, 23 rpm speed

    Article number: 34 225.0001

  • RolTop M10

    10 Nm max. torque, 14 rpm speed

    Article number: 34 221.0001

  • RolTop M12/23

    12 Nm max. torque, 23 rpm speed

    Article number: 34 235.0001

  • RolTop M20

    20 Nm max. torque, 14 rpm speed

    Article number: 34 231.0001

  • RolTop M30

    30 Nm max. torque, 14 rpm speed

    Article number: 34 241.0001

  • RolTop M40

    40 Nm max. torque, 14 rpm speed

    Article number: 34 251.0001

  • RolTop M50

    50 Nm max. torque, 14 rpm speed

    Article number: 34 261.0001
