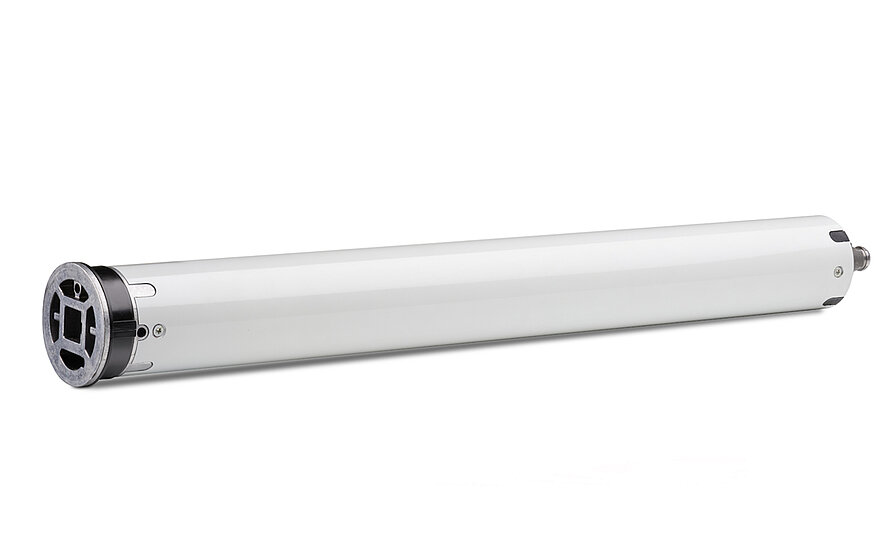

RolTop L RHNew
Category
Tubular motors
The wired version in the size L for roller shutters (from a shaft diameter of 63 mm) with round head. It features blind protection and electronic end position detection with soft stop.
Features
Roller shutters
Electronic
63
Hardwired
Description
- Smart force measurement
- Blind protection up/down and free travel
- End positions can be adjusted through the assembly cable
Product variants
-
RolTop L40 RH
40 Nm max. torque, 14 rpm speed
Article number: 36 723.0001
-
RolTop L60 RH
60 Nm max. torque, 14 rpm speed
Article number: 36 733.0001
-
RolTop L80 RH
80 Nm max. torque, 14 rpm speed
Article number: 36 743.0001
-
RolTop L100 RH
100 Nm max. torque, 11 rpm speed
Article number: 36 753.0001
-
RolTop L120 RH
120 Nm max. torque, 11 rpm speed
Article number: 36 763.0001
-
