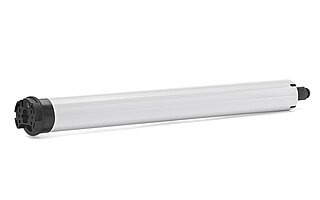

RolMotion M RHNew

Category

Tubular motors

The new super quiet tubular drive with round head for roller shutters (for shafts from 50 mm) in the wired version with two selectable running modes: standard running or whispering mode. Gentle operation is ensured by protection of the blind, intelligent force measurement and soft brake.

Features

Roller shutters
Electronic
50
Hardwired
Description

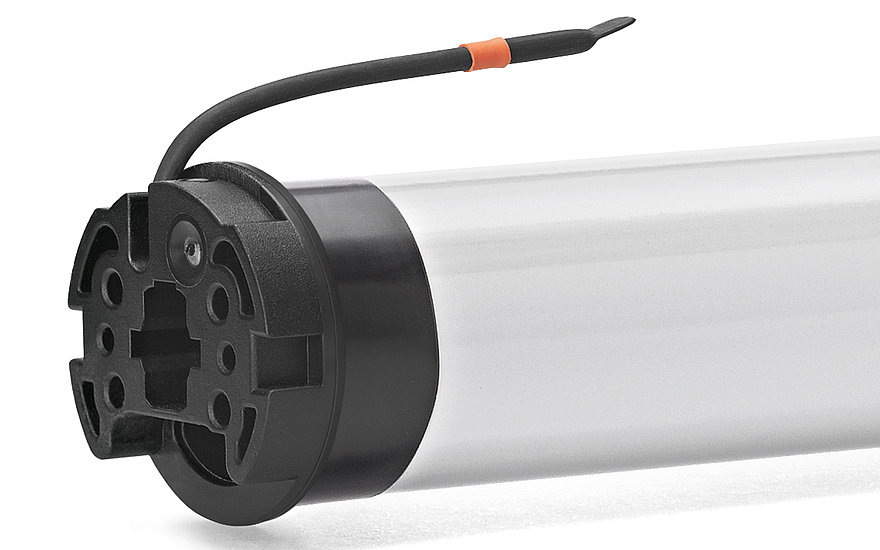

  • Round head
  • Smart force measurement
  • Two regulated speeds (standard running or whispering mode)
  • Long running time of 10 mins.
  • Blind protection up/down and free travel
  • Mechatronic end position recognition with Soft stop
  • End positions can be adjusted through the assembly cable
  • Noiseless soft brake
  • Parallel connection possible
Product variants
  • RolMotion M6 RH

    Round head, 6 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

    Article number: 48 301.0001

  • RolMotion M10 RH

    Round head, 10 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

    Article number: 48 221.0001

  • RolMotion M20 RH

    Round head, 20 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

    Article number: 48 231.0001

  • RolMotion M25 RH

    Round head, 25 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

    Article number: 48 241.0001
