RolMotion M-868 SHNew

Category

Tubular motors

The new super quiet radio tube drive with star head for roller shutters with two selectable running modes: standard running or whispering mode, is suitable for shafts with a diameter of 50 mm or more, has a blind protection and a noiseless soft brake.

Features

Roller shutters
Electronic
50
Radio

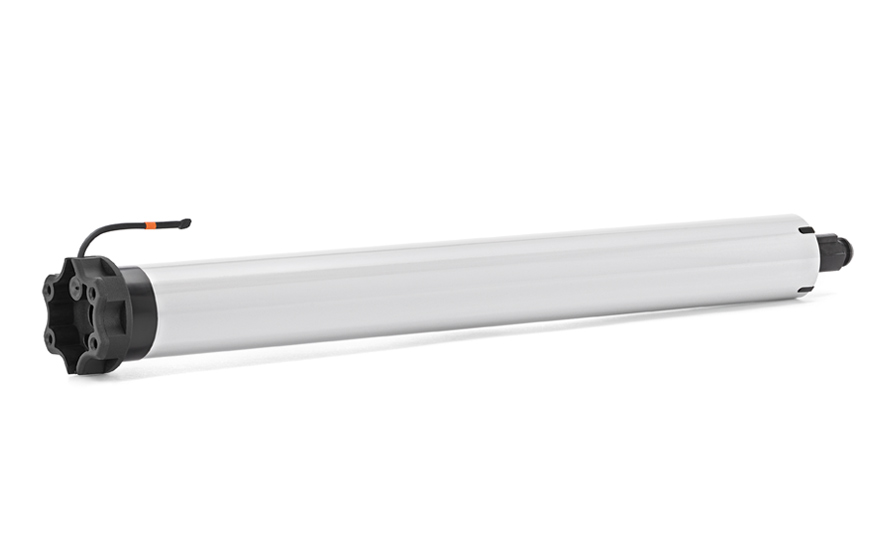

RolMotion M-868 SH radio tubular motor with star head

Description
  • Star head
  • Smart force measurement
  • Two regulated speeds (standard running or whispering mode)
  • Long running time of 10 mins.
  • Blind protection up/down and free travel
  • Mechatronic end position recognition with Soft stop
  • End positions can be adjusted through the assembly cable or hand-held transmitter
  • Noiseless soft brake
  • Adjustable ventilation andintermediate positions
Product variants
  • RolMotion M10-868 SH

    star head, 10 Nm max. torque, 14 rpm speed (whisper mode: 5)

    Article number: 49 222.0001

  • RolMotion M20-868 SH

    star head, 20 Nm max. torque, 14 rpm speed (whisper mode: 5)

    Article number: 49 232.0001

  • RolMotion M6-868 SH

    star head, 6 Nm max. torque, 14 rpm speed (whisper mode: 5)

    Article number: 49 302.0001

  • RolMotion M25-868 SH

    star head, 25 Nm max. torque, 14 rpm speed (whisper mode: 5)

    Article number: 49 242.0001
