Tubular motors

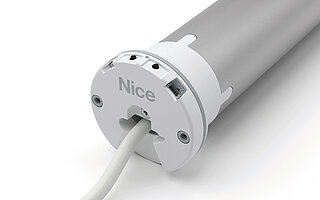

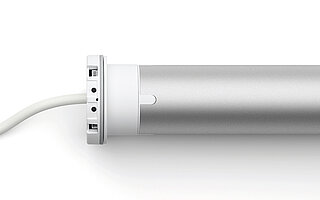

Tubular motor (24V DC) with electronic limit switch, practical dry contact and BusT4 inputs on the motor head for interior blinds. Ideal for integration with other building automation. For shafts from 45 mm, with obstacle detection and Soft Start and Soft Stop functions.


Blinds and screens
  • Minimum vibrations and extremely high level of quitness during operation for the highest acoustic comfort. Noise 33 dBA.
  • Tubular motor rotation speed is constant in all load conditions, thus guaranteeing, for installations with multiple blinds, perfect alignment between all blinds when opening and closing.
  • Possibility to set the up and down movement times.
  • Possibility to activate the obstacle detection function both while opening and closing.
  • Thanks to its compact dimensions, the motor can be installed even in the tightest spaces.
  • Adjustable speed for opening and closing.
  • Compatibility with KNX and the most used protocols in the Building Automation industry through DMKNX and DMBM modules.
  • Moreover, the practical dry contact input allows Era Inn Smart motors to be connected to any system featuring dry contact technology available on the market.
  • Easy to install and to program thanks to the Nice Screen Configuration Tool. Each motor can be programmed individually, without needing to power off the other motors in the same system.
  • Soft Start and Soft Stop functions electronically controlled allow to set different levels of acceleration and deceleration in approach to the limit switches.
  • Precise and quick limit switch adjustment using two pushbuttons located on the motor head.
  • Easy programming and diagnostic thanks to the feedback of the two-colour LED.
  • Low power consumption both during operation and in stand-by.
  • Practical cable with connector: 1.5 m long, which simplifies installation and maintenance operations.
  • Extended operation without the risk of overheating.

Applications: Roller blinds, Venetian blinds, Roman blinds, Pleated blinds, Projection screens

Product variants
  • E SMART MI 332 DC

    Electronic limit switch, dry contact, BusT4. 24 Vdc, 3 Nm, 32 rpm

    Article number: E SMART MI 332 DC

  • E SMART MI 632 DC

    Electronic limit switch, dry contact, BusT4. 24 Vdc, 6 Nm, 32 rpm

    Article number: E SMART MI 632 DC

  • E SMART MI 1020 DC

    Electronic limit switch, dry contact, BusT4. 24 Vdc, 10 Nm, 20 rpm

    Article number: E SMART MI 1020 DC
