NICE ERA INN EDGE S ACNew

Category

Tubular motors

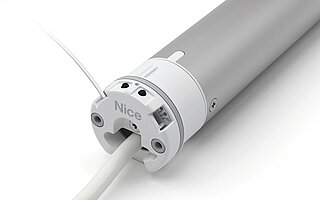

Tubular motor with electronic limit switch, practical dry contact input and built-in radio receiver for interior blinds. For shafts from 35 mm, with obstacle detection and Soft Start and Soft Stop functions.

Features

Blinds and screens
Electronic
35
Radio
Description
  • Minimum vibrations and extremely high level of quitness during operation for the highest acoustic comfort. Noise 35 dBA.
  • Tubular motor rotation speed is constant in all load conditions, thus guaranteeing, for installations with multiple blinds, perfect alignment between all blinds when opening and closing.
  • Possibility to set the up and down movement times.
  • Possibility to activate the obstacle detection function both while opening and closing.
  • Adjustable speed for opening and closing.
  • The practical dry contact input allows Era Inn Edge tubular motors to be connected to any system featuring dry contact technology available on the market.
  • Each motor can be programmed individually, without needing to power off the other motors in the same system.
    • Via a wireless connection, using Nice transmitters.
    • Via a wired connection, using the TTPRO palmtop programmer.
  • Soft Start and Soft Stop functions electronically controlled allow to set different levels of acceleration and deceleration in approach to the limit switches.

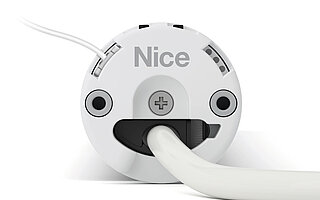

  • Precise and quick limit switch adjustment using two pushbuttons located on the motor head.
  • Easy programming and diagnostic thanks to the feedback of the two-colour LED.
  • Low power consumption both during operation and in stand-by.
  • Practical cable with connector: 1.5 m long, which simplifies installation and maintenance operations.
  • Extended operation without the risk of overheating.

Applications: Roller blinds, Venetian blinds, Roman blinds, Pleated blinds, Projection screens

Product variants
  • E EDGE SI 332 AC

    Electronic limit switch, dry contact and built-in radio receiver. 100-240 Vac, 3 Nm, 32 rpm

    Article number: E EDGE SI 332 AC

  • E EDGE SI 620 AC

    Electronic limit switch, dry contact and built-in radio receiver. 100-240 Vac, 6 Nm, 20 rpm

    Article number: E EDGE SI 620 AC

  • E EDGE SI 1012 AC

    Electronic limit switch, dry contact and built-in radio receiver. 100-240 Vac, 10 Nm, 12 rpm

    Article number: E EDGE SI 1012 AC
