JA Comfort-868New
Category
Venetian blind motors

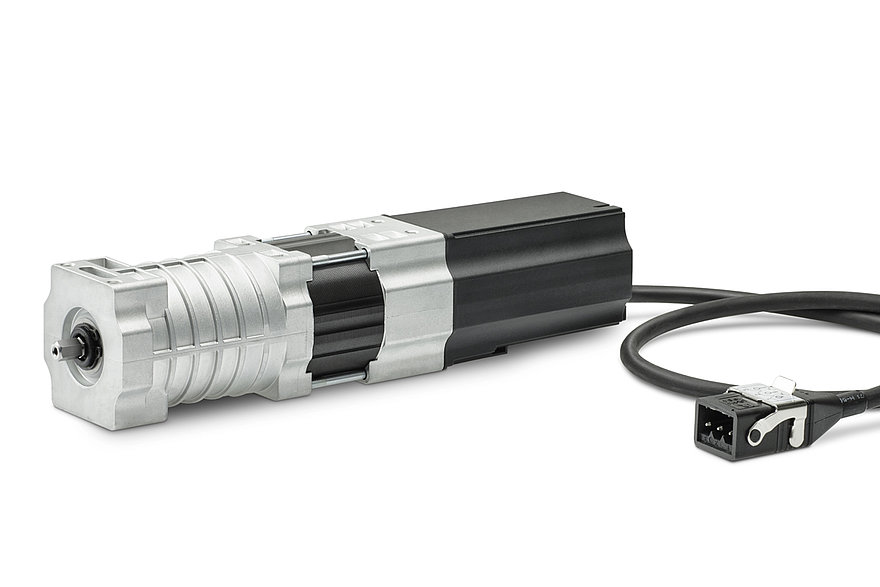

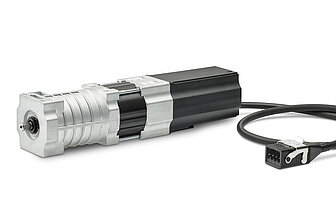

JA Comfort is a radio motor with electronic limit switch, slow travel mode, standstill recognition and belt length compensation for venetian blinds. One advantage is the precise slat positioning.
Features
Venetian blinds
Electronic
Radio
Examples of Use
Description
- ProLine 2, bidirectional radio with 868 / 915 MHz
- Commissioning possible with assembly cable or by radio transmitters
- Operation in 1-wire or 2-wire mode possible, no bridge required
- Stand-by power < 0,4 W
Product variants
-
JA 06 Comfort-868
6 Nm max. torque, 26 rpm speed, Slow travel mode: 6 rpm
Article number: 35 222.0001
-
JA 09 Comfort-868
9 Nm max. torque, 26 rpm speed, Slow travel mode: 6 rpm
Article number: 35 232.0001
-
JA 04/35 Comfort-868
4 Nm max. torque, 35 rpm speed, Slow travel mode: 6 rpm
Article number: 35 226.0001
-
JA 06/35 Comfort-868
6 Nm max. torque, 35 rpm speed, Slow travel mode: 6 rpm
Article number: 35 236.0001
-
JA 04/50 Comfort-868
4 Nm max. torque, 50 rpm speed, Slow travel mode: 6 rpm
Article number: 35 246.0001
-
