RolTop M RH fast running versionNew

Category

Tubular motors

Like all electrical drives with a wrap-around round head, the very versatile wired, fast running version of the RolTop M-RH is particularly suitable for roller blinds and ZIP systems (from a shaft diameter of 50 mm). It additionally features smart force measurement, blind protection and soft brake (up to 7 Nm).

Features

Roller shutters, Blinds and screens, Zip screens
Electronic
50
Hardwired

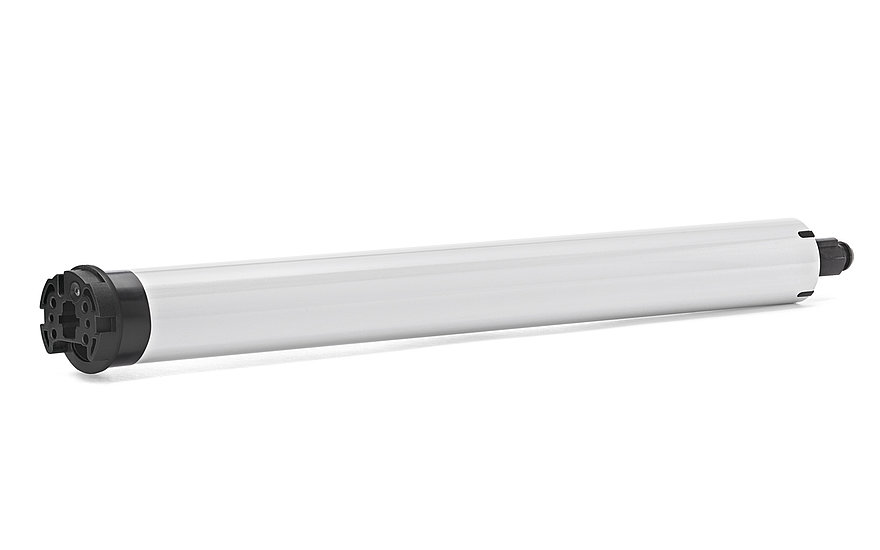

RolTop M RH tubular motor, fast running version, complete

RolTop M RH wired tubular motor, fast running version, with round head for roller shutters, roller blinds, insect protection and screens

Description
  • Smart force measurement
  • Blind protection up/down
  • End positions can be adjusted through the assembly cable
  • Noiseless soft brake up to 7 Nm
  • Round head for ZIP systems
  • Fast running version
  • Very versatile
Product variants
  • RolTop M4/60 RH fast running version

    4 Nm max. torque, 60 rpm speed

    Article number: 38 469.0001

  • RolTop M7/23 RH fast running version

    7 Nm max. torque, 23 rpm speed

    Article number: 38 225.0001

  • RolTop M12/23 RH fast running version

    12 Nm max. torque, 23 rpm speed

    Article number: 38 235.0001
