JA / JA SoftNew
Category
Venetian blind motors
The venetian blind motor is available in three different versions (Soft, e, dk). Depending on requirements with soft brake, single or double-sided output. The limit stop is mechanical.
Features
Venetian blinds
Mechanical
Hardwired
-

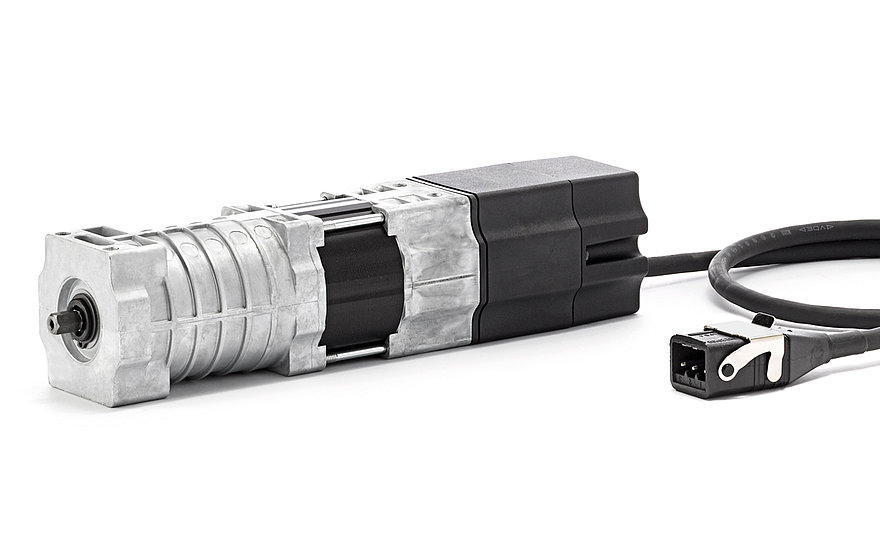

JA Soft venetian blind motor with noiseless soft brake
-

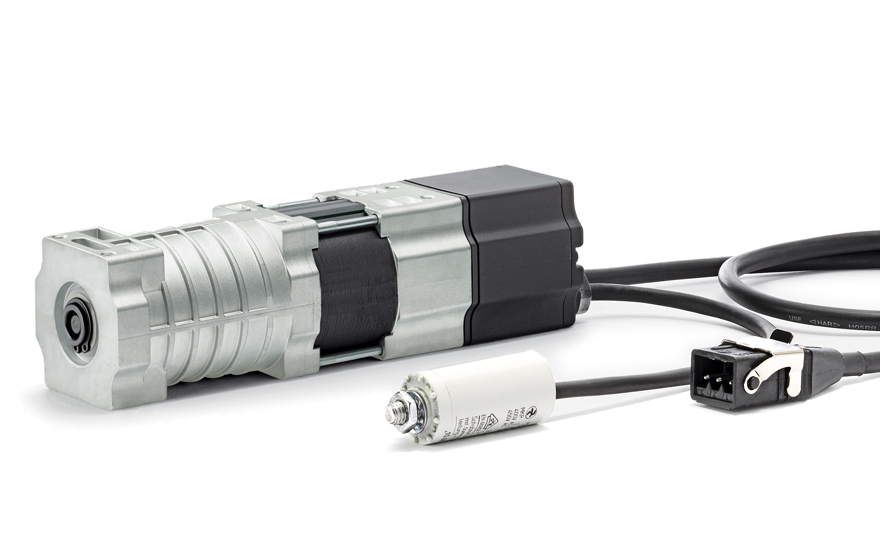

JA e venetian blind motor with single-sided output
-

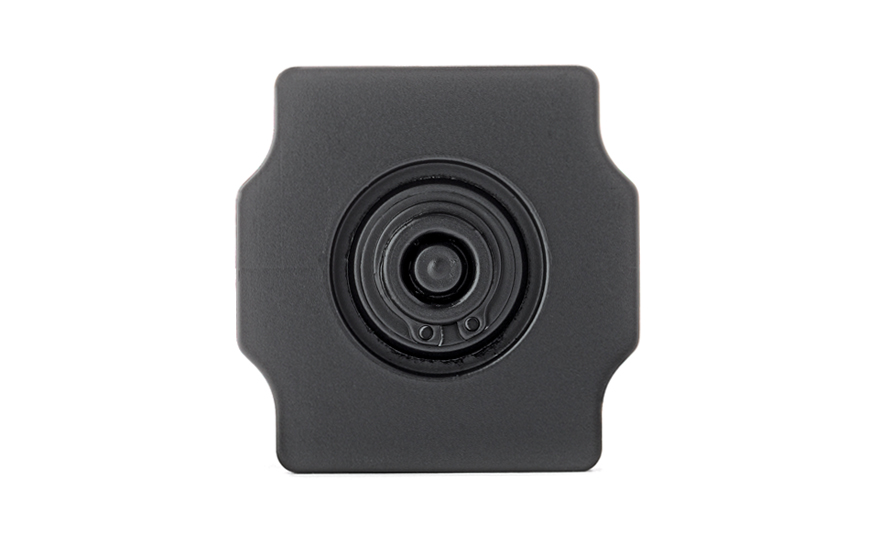

JA e venetian blind motor with single-sided output
-

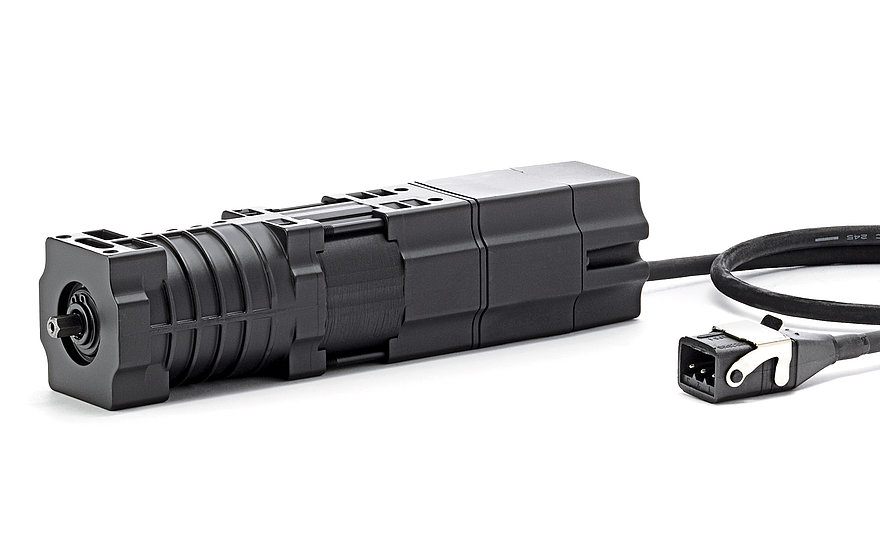

JA dk venetian blind motor with double-sided output
-
JA dk venetian blind motor with double-sided output
-

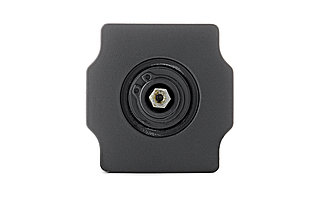

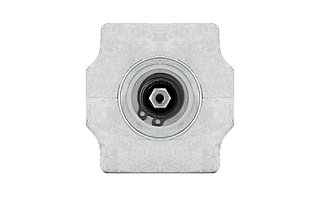

JA Soft venetian blind motor with noiseless soft brake
Examples of Use
Description
- Noiseless soft brake in the soft versions
- Suitable for a head box of 55 x 55 mm
Soft = noiseless soft brake, double-sided output
e = single-sided output for right hand installation, capacitor outside
dk = double-sided output, capacitor installed
Product variants
-
JA 06 Soft
6 Nm max. torque, 26 rpm speed
Article number: 35 204.0003
-
JA 09 Soft
9 Nm max. torque, 26 rpm speed
Article number: 35 224.0003
-
JA 06e
6 Nm max. torque, 26 rpm speed
Article number: 35 022.0002
-
JA 06dk
6 Nm max. torque, 26 rpm speed
Article number: 35 052.0003
-
JA 20dk
2x10 Nm max. torque, 26 rpm speed
Article number: 35 072.0002
-
JA 10dk
10 Nm max. torque, 26 rpm speed
Article number: 35 062.0002
References to this product
-
Luxury hotel Kameha Grand
Extravagant design and a sustainable energy concept – architect Karl Heinz Sommer is making a clear statement with the five-star hotel. Elero venetian blind motors suit perfectly in this combination of comfort, functionality and design.
To reference -
Sinar Mas Plaza
In the fifth tallest tower in Shanghai, the Sinar Mas Plaza, a solar shading system with motorisation from elero ensures optimum performance and comfort. For this purpose, 7,800 JA 06 Soft Venetian blind drives were installed to move the sun shading of the 320-metre-high skyscraper on 65 floors.
To reference -
Wörthersee Stadium
The optimum use of natural light was an important criterion for the planners – and in particular the west façade is thus made of large panorama windows. Elero venetian blind motors ensure that there is no unpleasant dazzle even when the sun is low in the sky.
To reference
-
