RolTop/T S-868New

Category

Tubular motors

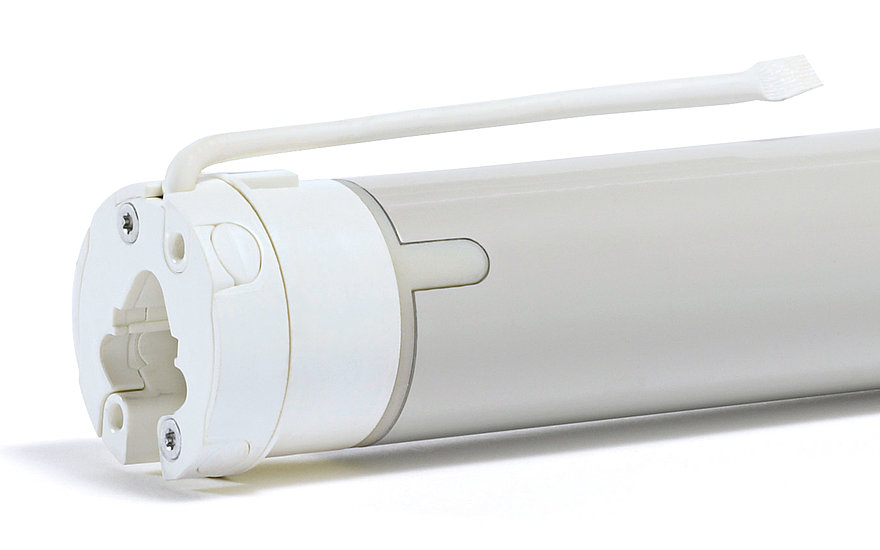

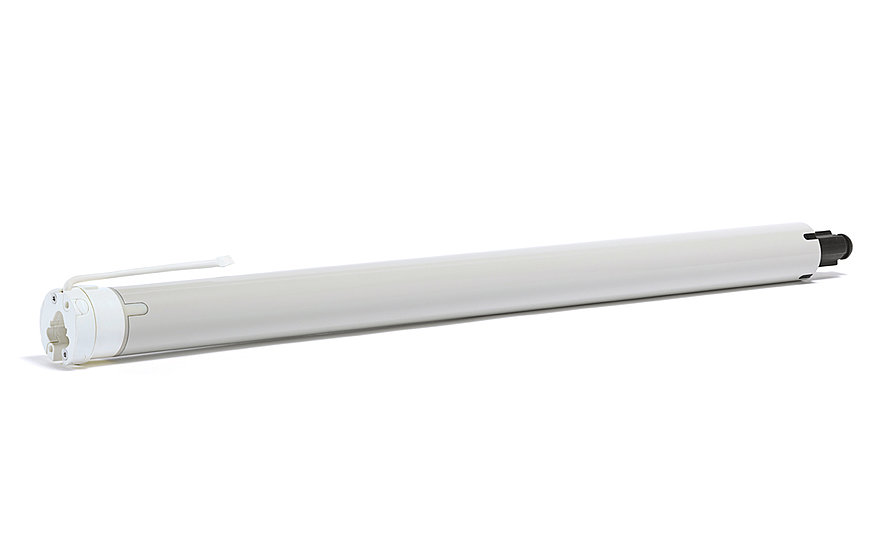

The RolTop T S-868 is the radio tubular drive for Dual Screens from elero provides an initial momentary mode with latching mode after 2 seconds.













Features

Dual screens
Electronic
38
Radio
Description
  • Limit switch:
    • Electronic limits with soft stop on end position approach
  • Highlights:
    • Initial momentary mode with latching mode after 2 seconds
    • Smart force measurement
    • Application protection in up and down direction and reversion on obstacle
    • Parallel connection possible
    • Limits can be adjusted via radio remote control or installation lead
  • Shaft size: From Ø = 38 mm
  • Features: Noiseless soft brake up to 8 Nm
  • Radio system: Bi-directional 868 MHz radio including routing
    (alternative 915 MHz available)
Product variants
  • RolTop/T S1.5/70-868

    Torque 1,5 Nm, speed 70 rpm

    Article number: 30 226.0006

  • RolTop/T S3/30-868

    Torque 3 Nm, speed 30 rpm

    Article number: 30 216.0006

  • RolTop/T S5/30-868

    Torque 5 Nm, speed 30 rpm

    Article number: 30 236.0006
