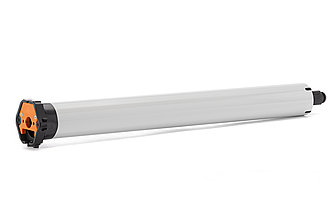

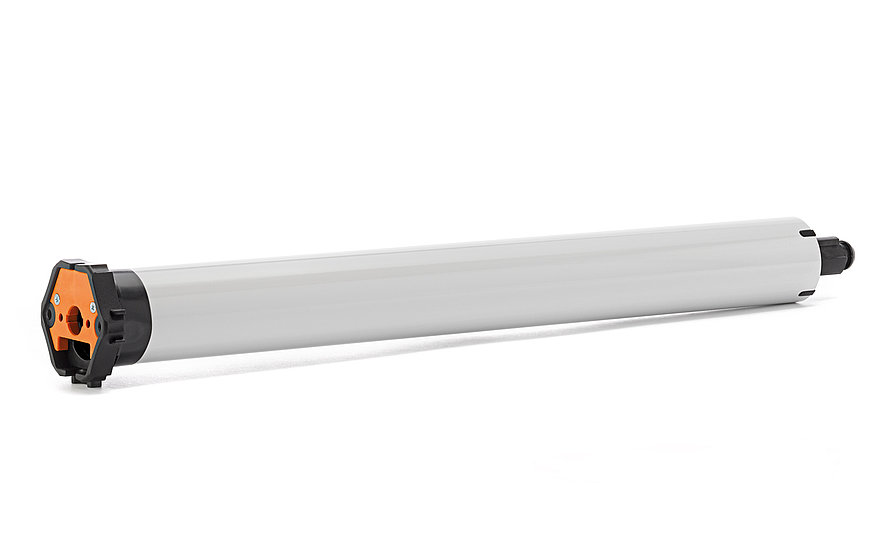

RolTop M Fast running versionNew
Category
Tubular motors
The wired version of the RolTop M as fast running version. Just like the radio version it is also particularly suitable for the operation of roller blinds and insect screens (from a shaft diameter of 50 mm).
Features
Blinds and screens, Special applications (90 rpm)
Electronic
50
Hardwired
Description
- Soft start
- Smart force measurement
- Blockage detection up/down
- End positions can be adjusted through the assembly cable
- Noiseless soft brake
- Fast running version
Product variants
-
RolTop M2,5/90
2.5 Nm max. torque, 90 rpm speed
Article number: 34 169.0001
-
RolTop M6/35
6 Nm max. torque, 35 rpm speed
Article number: 34 237.0001
-
RolTop M7/23
7 Nm max. torque, 23 rpm speedArticle number: 34 225.0001
-
RolTop M9/35
9 Nm max. torque, 35 rpm speedArticle number: 34 247.0001
-
RolTop M12/23
12 Nm max. torque, 23 rpm speedArticle number: 34 235.0001
-
